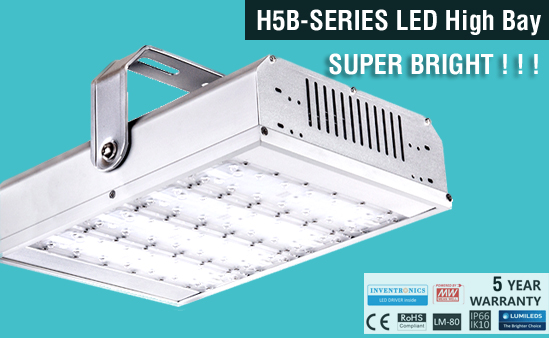

High Bay LED Light Fixtures,Modular,Ultra-Efficient,Super Bright
Revolutionized traditional external driver design, extremely simple and clean appearance brings incomparable refreshing experience. The Luminaires featured with easy mounting and flexible angle adjustment; Built-in driver design; multi-illuminated angle with 60, 90 and 110.Wide input voltage from 100-240V/277V AC, suitable for a variety of applications.The luminaire owns up to 140 lm/W (lumens per watt) luminous efficiency and over than 60,000 hours operation life. H5B-Series LED High Bay Lights are intended to build the most cost-performance luminaires ever. Each LUXEON T owns electrostatic protection component, maximally avoid the damage of electrostatic.
High Bay LED Light Fixtures,Modular,Ultra-Efficient,Super Bright
Product Overview & Common Applications
An elegant design with our 3rd generation LED modules combined with highly efficient LUMILEDS® LUXEON 3030 2D luminous sources, providing excellent lumen output, long-lasting stability and splendid sight.The H5B-Series LED high bay lights have a super  high luminous efficiency and better service life.Provide 5 years warranty on luminaire.


Specifications & Description
LED (Light Emitting Diode) high-bay light fixtures are particularly suited for the replacement of 400 Watt & 250 Watt sodium (SON), metal-halide and mercury vapour high bay fixtures at heights above 8 metres in large industrial buildings such as warehouses, distribution centres & large cold-store buildings.They feature the highest quality LEDs, emitting a similar amount of brightness, but at a substantially reduced cost and last up to 10 times longer with low loss of illumination.LED High Bay Lights use up to 80% less electricity than regular sodium vapour high bays.

LED LUMINOUS SOURCE :
PHILIPS LUMILEDS, LUXEON, Greater than 150lm/w high efficacy, illumination grade LED light source

LED DRIVER:
Option-1: high-end MEANWELL HLG series LED Driver,optimal stability, performance and lifespan.
Option-2:DIMMABLE INVENTRONICS High-end programmable LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan

LED MODULE
specially designed with powerful thermal disspation and IP67 waterproof capability.

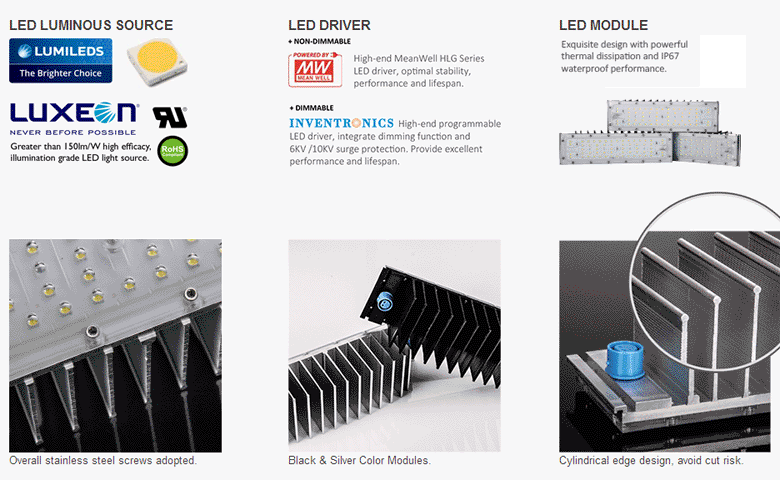

ZSIMC-LED-HIGH-BAY-LIGHT-CHINA

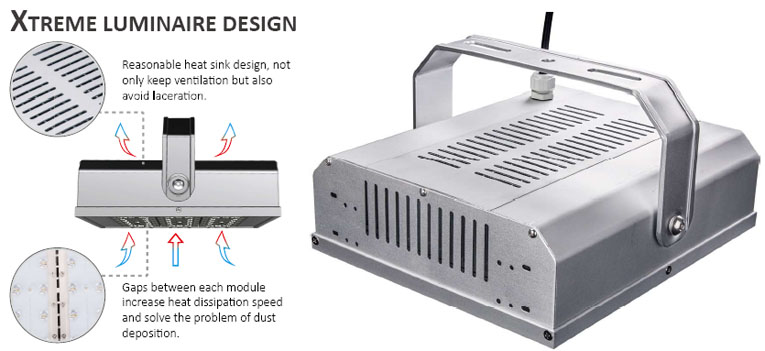

Enhanced Heat-Sinking Performance

HIGHBAY-LED-LIGHTS-BACKSIDE-VIEW

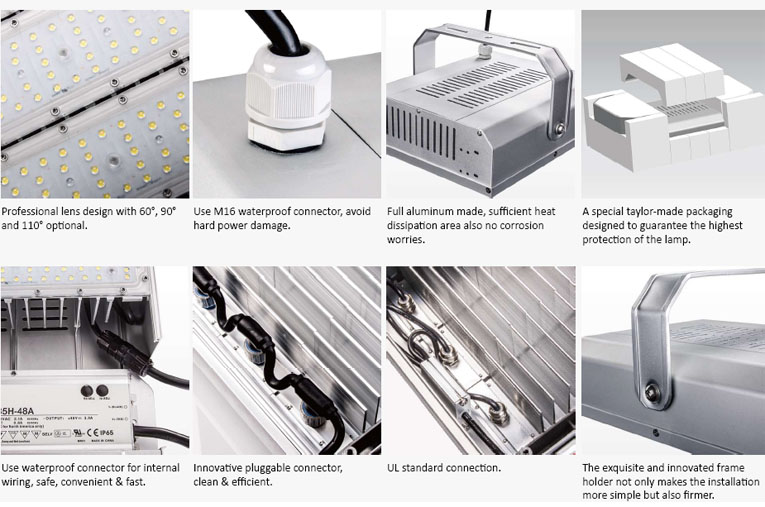

HIGHBAY-LED-LIGHTS-DETAILED-VIEW

NEW ERA OF LED GREEN LIGHTING


SERIES-H5B LED HIGH BAYLIGHTS

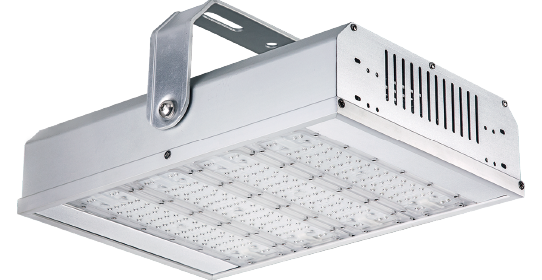

H5B-LED-HIGH-BAY-LIGHT-160W An elegant design with our 3rd generation LED modules combined with highly efficient LUMILEDS® LUXEON 3030 2D luminous sources, providing excellent lumen output, long-lasting stability and splendid sight.The H5B-Series LED high bay lights have a high luminous efficiency and better service life.Provide 5 years warranty on luminaire.

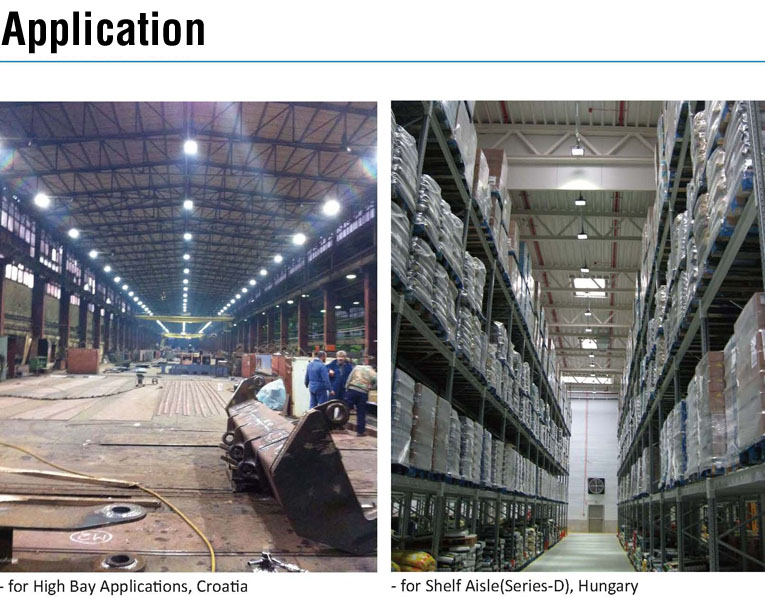

LED-HIGH-BAY-LIGHT-APPLICATION



Available Production Models in this H5B Series

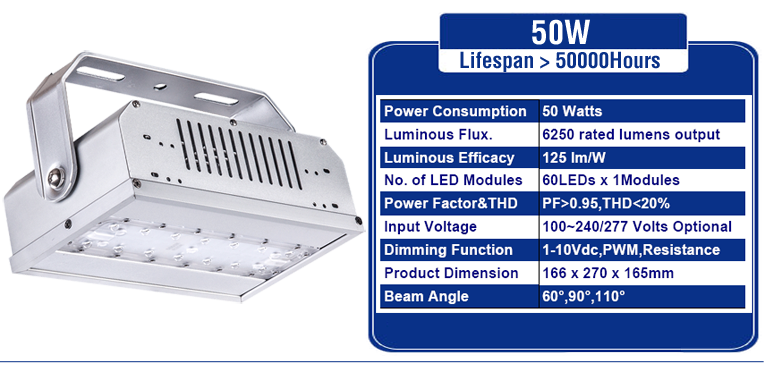

H5B-LED-HIGHBAY-LIGHT-50W-ZSIMC-LIGHTING

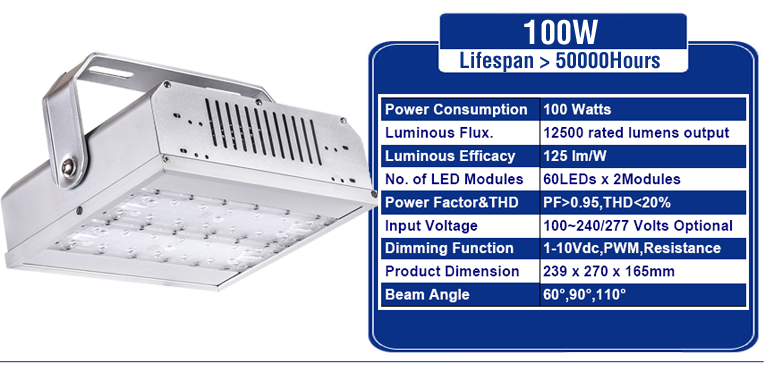

H5B-LED-HIGHBAY-LIGHT-100W-ZSIMC-LIGHTING

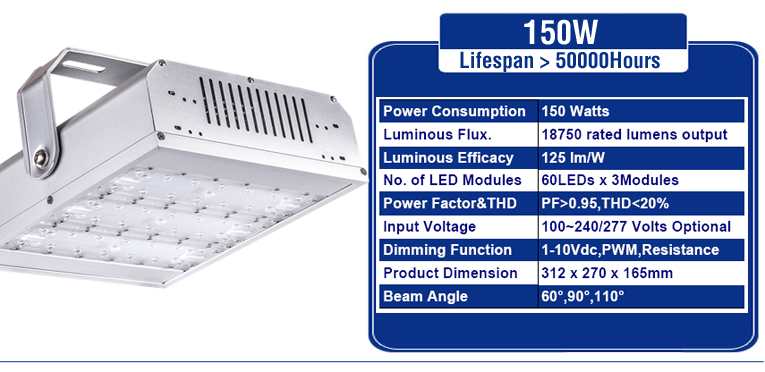

H5B-LED-HIGHBAY-LIGHT-150W-ZSIMC-LIGHTING

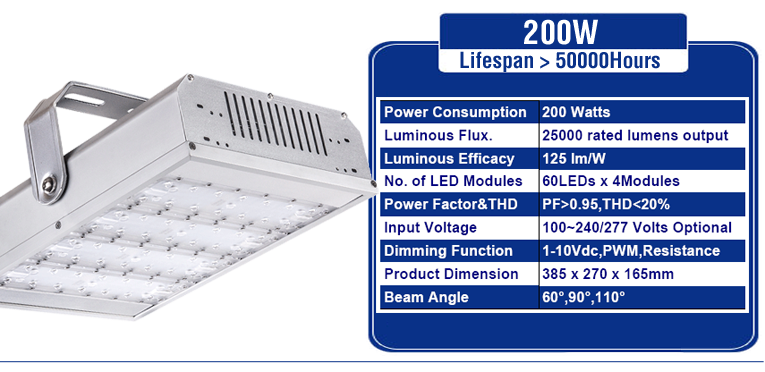

H5B-LED-HIGHBAY-LIGHT-200W-ZSIMC-LIGHTING

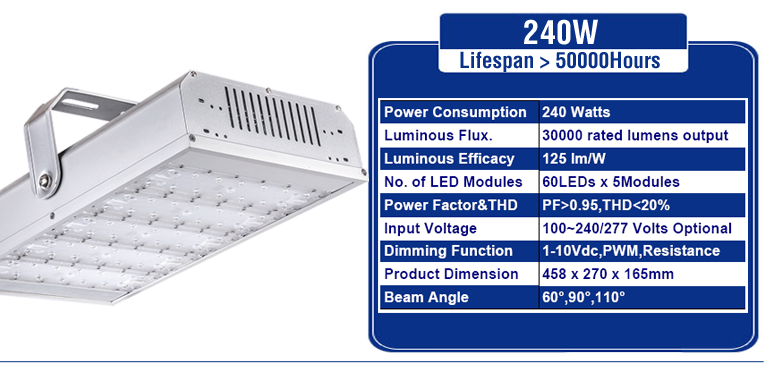

H5B-LED-HIGHBAY-LIGHT-240W-ZSIMC-LIGHTING

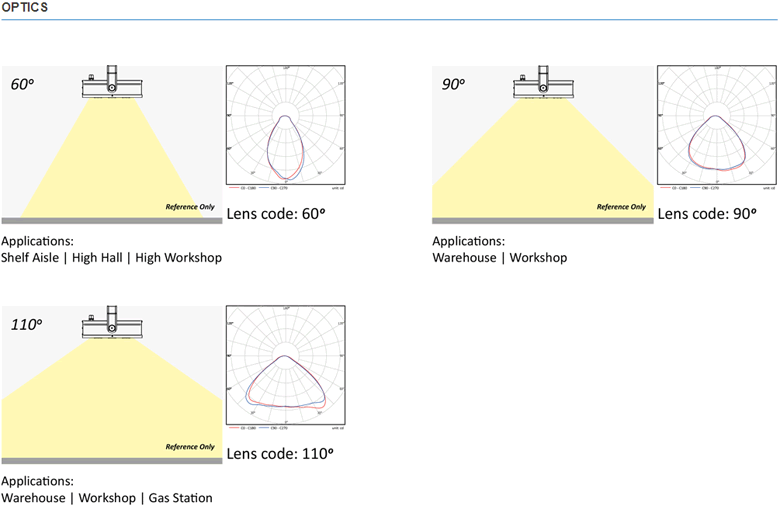

H5B SERIES LED HIGH BAY LIGHT - PHOTOMETRICS

H5B SERIES LED HIGH BAY LIGHT - PHOTOMETRICS

Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).

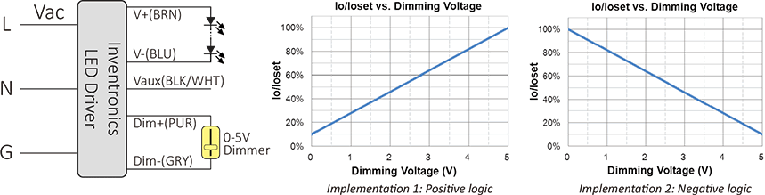

» 0-5V Dimming
The recommended implementation of the dimming control is provided below.

0-5-Dimming

Notes:
1. The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-5V dimming is not used, Dim + should be open.
4. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

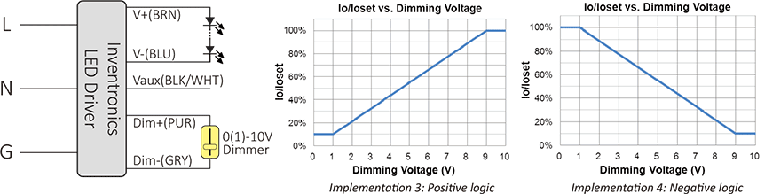

» 0-10V Dimming
The recommended implementation of the dimming control is provided below.

0-10v-dimming-for-H5B-Highbay-LED-Light-ZSIMC

Notes:
1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-10V dimming is not used, Dim + should be open.
4. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

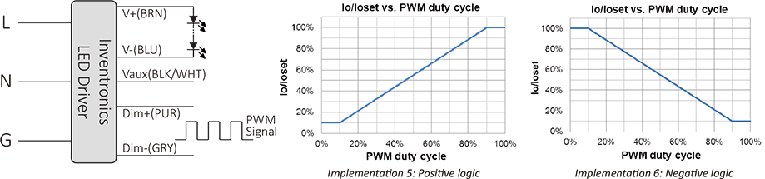

» PWM Dimming
The recommended implementation of the dimming control is provided below.

LED-HIGH-BAY-LIGHTING-ZSIMC-LED-PWM-DIMMING

Notes:
1. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
2. If PWM dimming is not used, Dim + should be open.
3. When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.

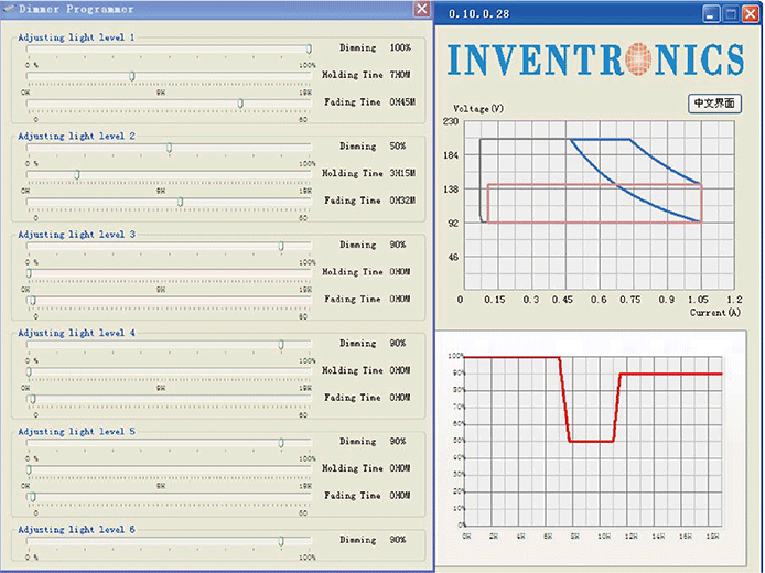

LED-HIGH-BAY-LIGHT-DIMMING-PROGRAM

Notes:
1. Time Dimming is required to program by computer (Microsoft Windows).
2. Set the timing curve by pulling the sliders.

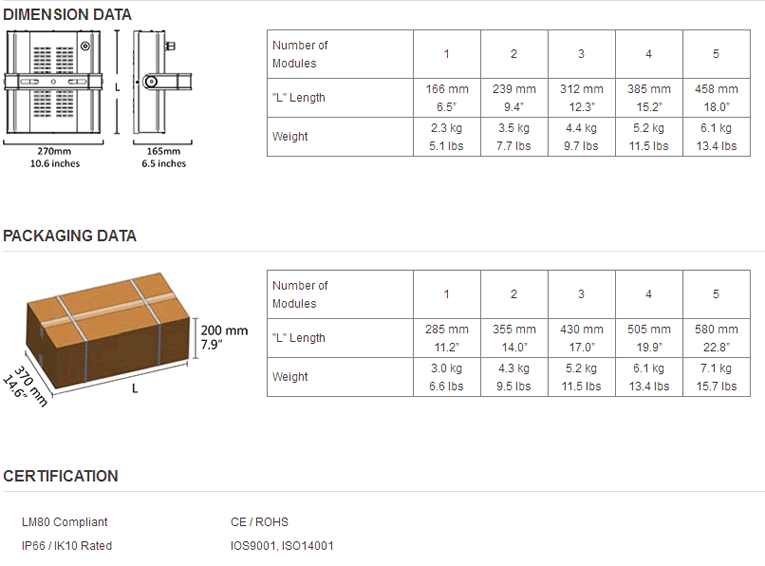

H5B-LED-HIGH-BAYLIGHT-PACKING-DETAILS


AFTER-SALE SERVICE
We warrant this  hardware product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. WE provides free repair or replacement within warranty period. WE shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.

*Damage by thunder stroke over 10KV(L,N to FG) /6KV(L to N) will not covered by warranty based on EC61000-4-5.
