China LED High Bay Light 50W,100W 150W 200W 120-277 Volts

You can send an Email Inquiry to info@ledproductos.com, we will reply with pricing, packing weight & dimensions, specification catalog, certification & listings, and also follow up your specific requirements & questions accordingly.
LED High Bay Light 50W,100W 150W 200W 120-277 Volts

Power Consumption 40-240 Watts (40 watt LED Module)
Working Voltage 100-240/277VAC
Luminous Flux 6,250 -30,000lm output (125 lm/W)
Certifications CE, ROHS, LM80, ISO9001, ISO14001
Beam Spread 60°,90°,110° Degree optional
Color Temperature 4000K (Nature White), 5000K (Pure White), 5700K (Cool White)
LED High Bay Light 50W,100W 150W 200W 120-277 Volts
Product Overview & Common Applications
H-Series LED High Bay Lights are using High Luminous Efficiency PHILIPS  3030 2D Luminous Source and High Reliable MEANWELL HLG Driver. Revolutionized traditional external driver design, extremely simple and clean appearance brings incomparable refreshing experience. The Luminaires featured with easy mounting and flexible angle adjustment; Built-in driver design; multi-illuminated angle with 60, 90 and 110.Wide input voltage from 100-240V/277V AC, suitable for a variety of applications.

The luminaire owns up to 125 lm/W (lumens per watt) luminous efficiency and over than 60,000 hours operation life. H-Series LED High Bay Lights are intended to build the most cost-performance luminaires ever. Each LUXEON T owns electrostatic protection component, maximally avoid the damage of electrostatic.

Ideal Application:

industrial and commercial areas, factories, hangars, shopping malls, warehouses, air ports, supermarkets, exhibition halls, gyms, sport areas, swimming pools and all kinds of storage places.

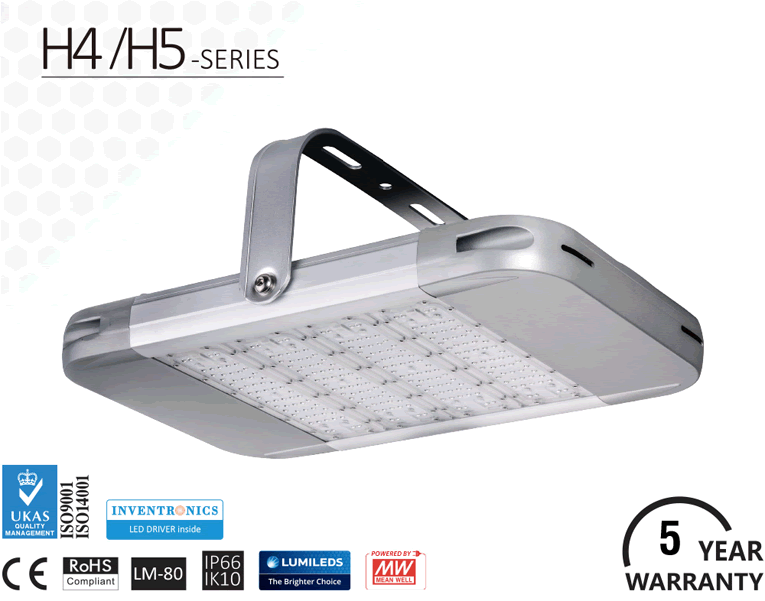

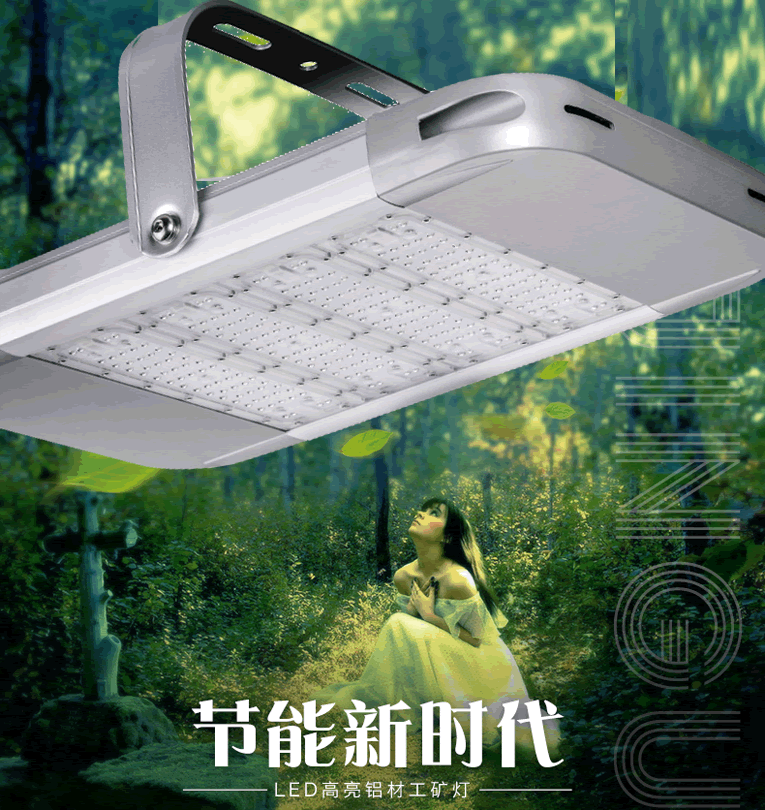

H-SERIES-INDUSTRIAL-HIGHBAY-LED-ZSIMC-LIGHTING
Specifications & Description

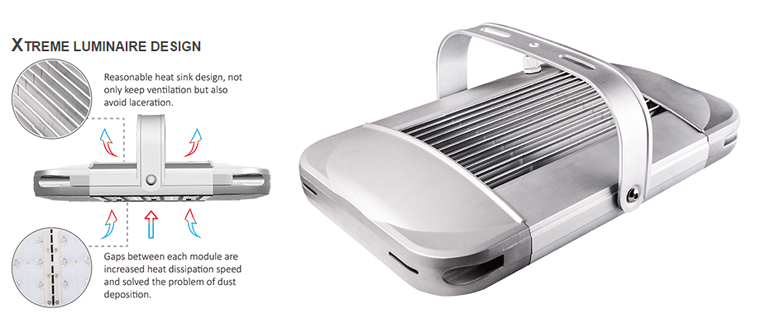

Back View of this HighBay LED Fixture

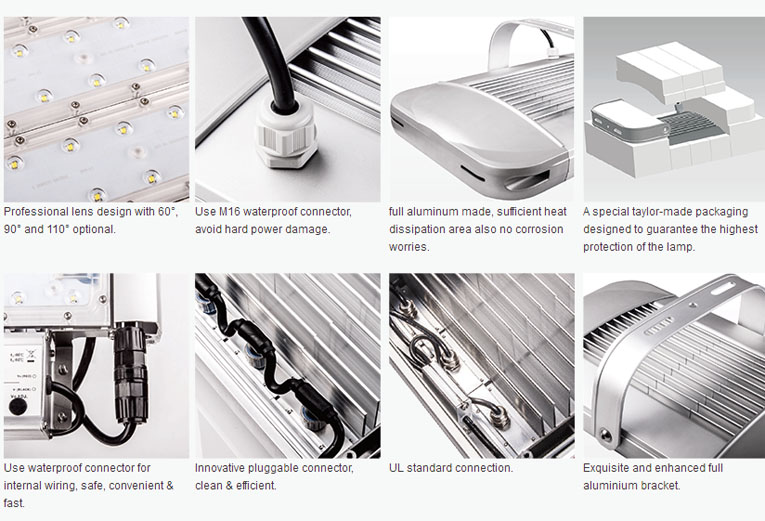

ZSIMC-LED-HIGHBAY-LIGHTING-DETAILED-VIEW-PARTS

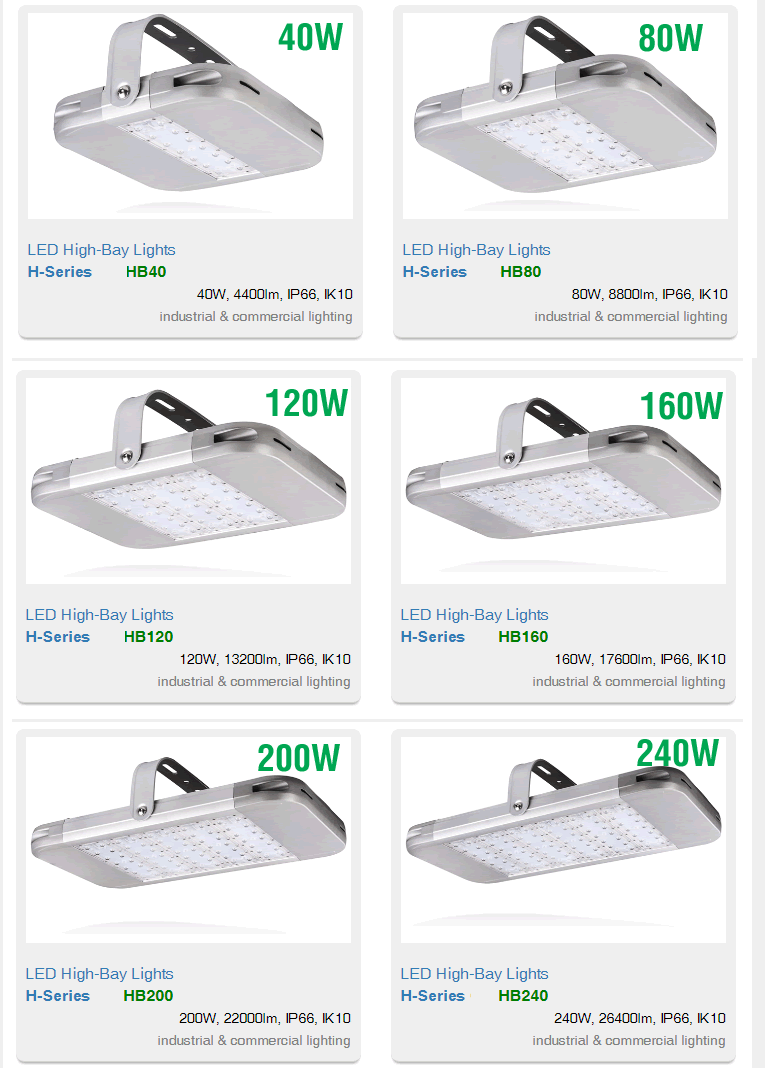

H-SERIES-INDUSTRIAL-HIGHBAY-LED-ZSIMC-LIGHTING-ALL-MODELS

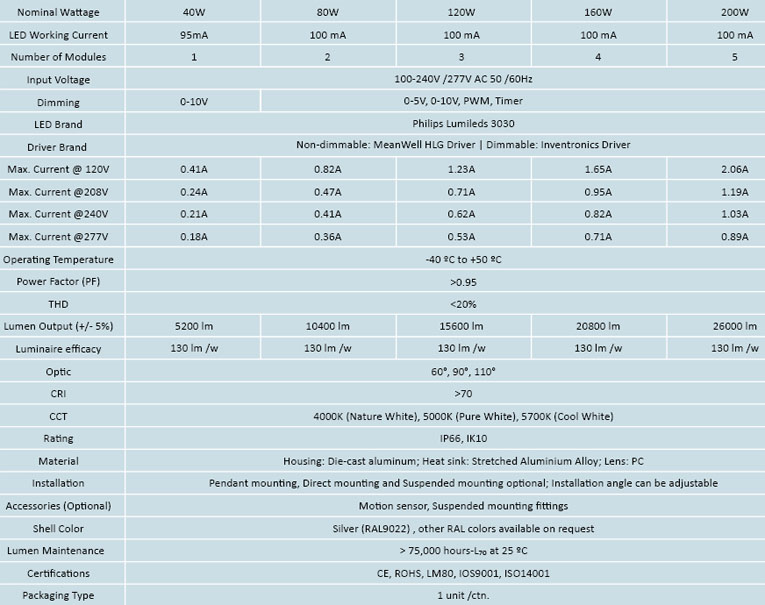

ZSIMC-LED-HIGHBAY-40W-240W-PARAMETERS

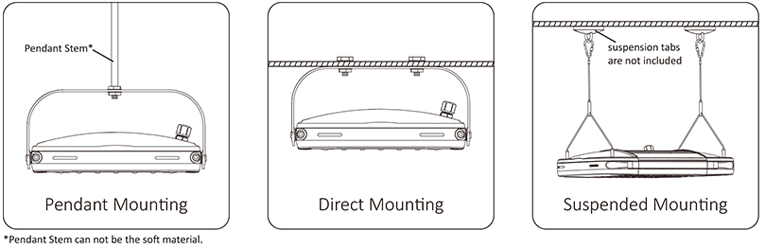

Installation Guide for this High-Bay LED Light H-Series

Installation Guide

ALSO CAN BE ANOTHER SUSPENDED MOUNTING

SUSPENDED MOUNTING INSTALLATION

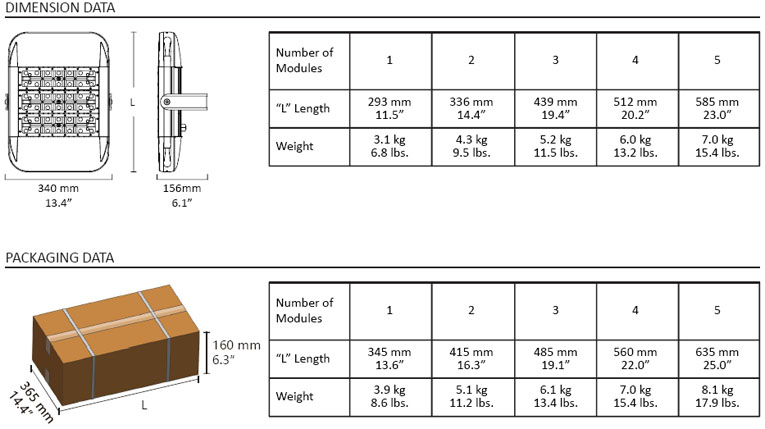

Packing Details & Shipping Information

ZSIMC-LED-HIGH-BAY-LIGHTS-PACKING-SIZE-AND-WEIGHT

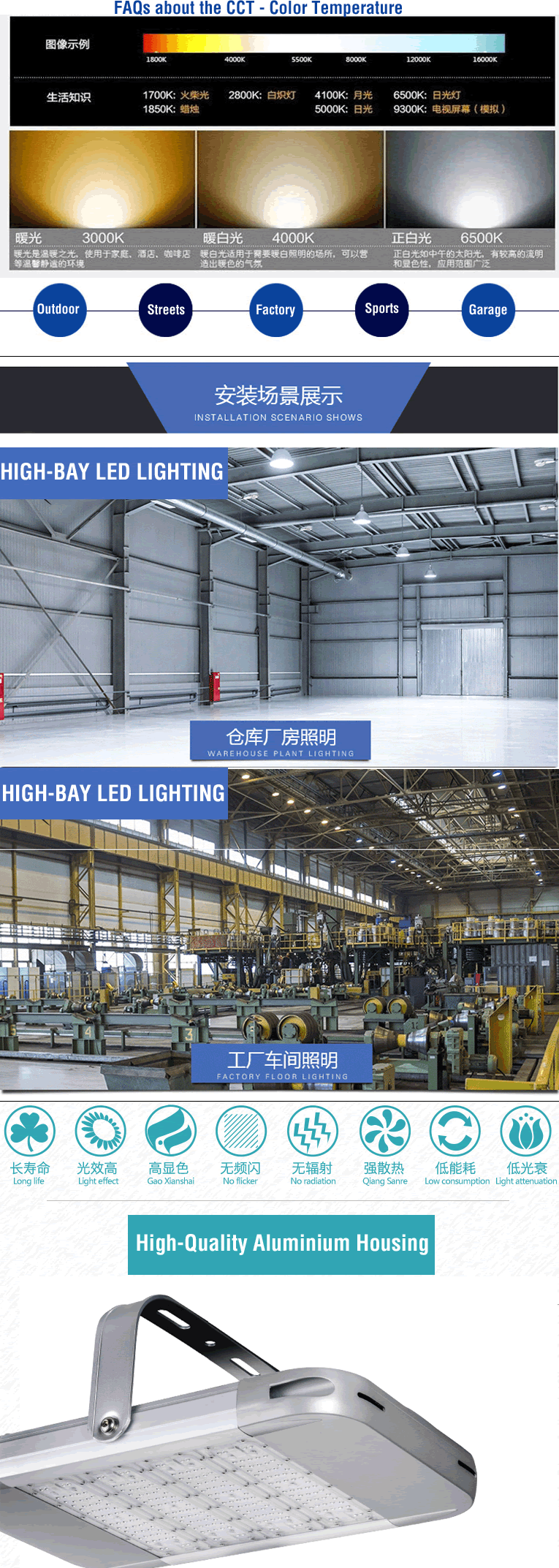

Applications typical for this H-Series High Bay LED Lamp



ZSIMC-LED-HIGH-BAY-LAMP-APPLICATIONS

LED LUMINOUS SOURCE :
PHILIPS LUMILEDS, LUXEON, Greater than 150lm/w high efficacy, illumination grade LED light source

LED DRIVER:
Option-1: high-end MEANWELL HLG series LED Driver,optimal stability, performance and lifespan.
Option-2:DIMMABLE INVENTRONICS High-end programmable LED Driver, integrate dimming function and 6KV / 10KV surge protection. Provide excellent performance and lifespan

LED MODULE
specially designed with powerful thermal disspation and IP67 waterproof capability.


ZSIMC-LED-HIGH-BAY-LIGHT-CHINA




SERIES-H4 LED HIGH BAYLIGHTS

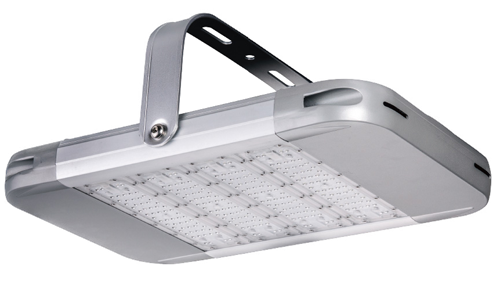

HIGH-BAY-LED-ZSIMC-LED-LIGHTING-H An elegant design with our 3rd generation LED modules combined with highly efficient LUMILEDS® LUXEON 3030 2D luminous sources, providing excellent lumen output, long-lasting stability and splendid sight.The H5B-Series LED high bay lights have a high luminous efficiency and better service life.Provide 5 years warranty on luminaire.


H5B SERIES LED HIGH BAY LIGHT - PHOTOMETRICS

H5B SERIES LED HIGH BAY LIGHT - PHOTOMETRICS

Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).

» 0-5V Dimming
The recommended implementation of the dimming control is provided below.

0-5-Dimming

Notes:
1. The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-5V dimming is not used, Dim + should be open.
4. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.


» 0-10V Dimming
The recommended implementation of the dimming control is provided below.

0-10v-dimming-for-H5B-Highbay-LED-Light-ZSIMC

Notes:
1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-10V dimming is not used, Dim + should be open.
4. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

» PWM Dimming
The recommended implementation of the dimming control is provided below.

LED-HIGH-BAY-LIGHTING-ZSIMC-LED-PWM-DIMMING

Notes:
1. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
2. If PWM dimming is not used, Dim + should be open.
3. When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.

LED-HIGH-BAY-LIGHT-DIMMING-PROGRAM

Notes:
1. Time Dimming is required to program by computer (Microsoft Windows).
2. Set the timing curve by pulling the sliders.
