LED Street lights,Optimum Quality,Meanwell LED Driver
This range of LED Street Lights own up to 130 lm/W (lumens per watt) efficiency and over than 100,000 hours operation life. Exquisite design with powerful thermal output, with more reliable waterproof performance.This LED Street Light is intended to build the most cost-performance ever.An elegant design with 3RD Generation LED Module, High Efficient PHILIPS 3030 2D LED Luminous Source and High Reliable MEANWELL HLG LED Driver. They give best luminous output, stability and extra-long life. Each LED owns electrostatic protection component, maximally avoid the damage of electrostatic.
LED Street lights,Optimum Quality,Meanwell LED Driver
Product Overview & Common Applications
Ideal Application: industrial and commercial outside areas, parking areas, drive ways, road, high ways, and all kinds of streets areas.

Additional intelligent lighting controls:
Dimmable
Sensor with day lights switch

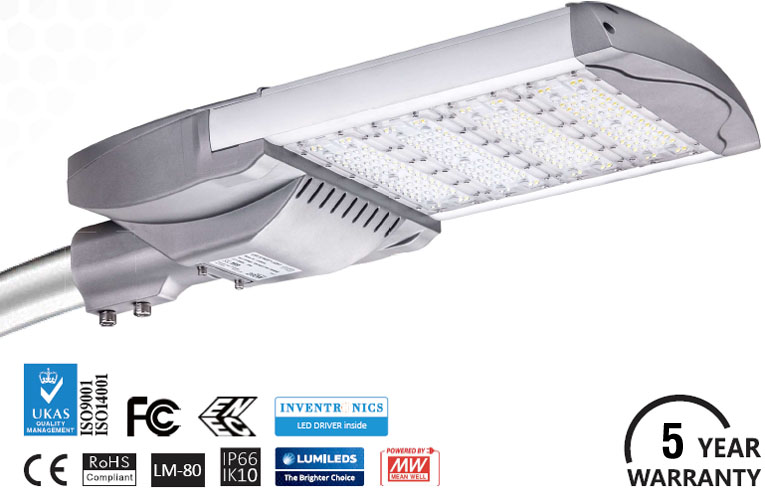

China-LED-Street-Lights-ZSIMC-LED-STREET-LIGHTING-01
Specifications & Description

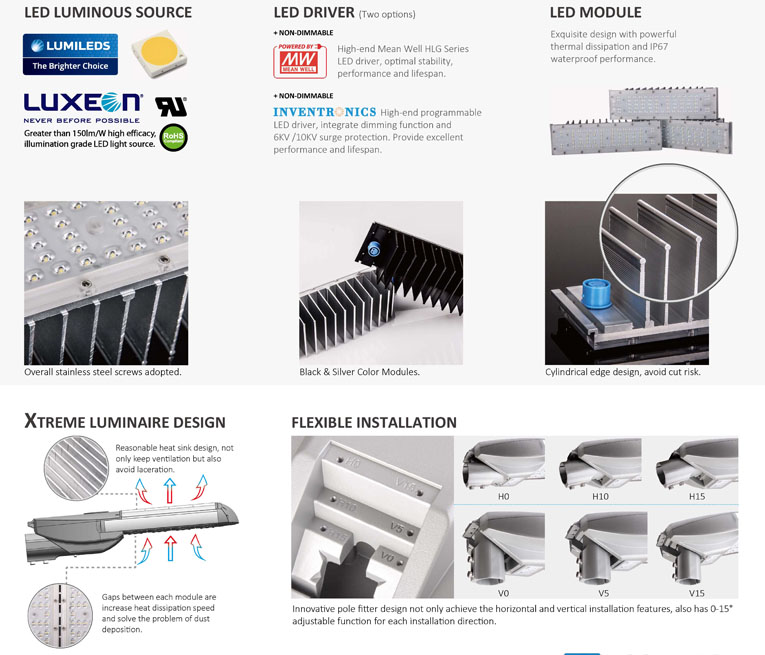

FEATURES-AND-ADVANTAGES


Premium Quality LED Street Lights

Our Modular Designed LED street lighting luminaires adopt premium grade Philips 3030 2D LED’s as the light source, providing excellent luminous efficiency, long lasting stability and a superior clean white light. The exterior body is made with high quality die-cast aluminium with anti-static and anticorrosion coating. Not only built to IP66 protection, these luminaires can also resist flames.

With the high brightness LED light engine and cutting edge Meanwell LED driver gives an expected lamp life of up to 100,000 hours ensuring virtually maintenance free operation.

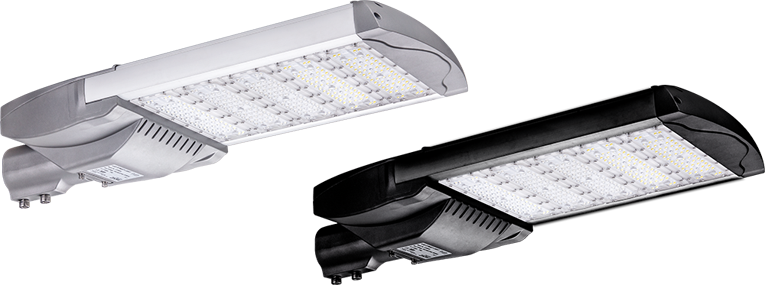

H-Series-LED-Streetlights

Specification Features

Working voltage: 100-240VAC
CRI: Ra 82
Dimming: Option available
Working temperature: -40°C~+50°C
Power factor: PF>0.90
Protection: IP66, IK08
Beam angle: 1S, 2M, 3M, 5S
Adjustable mounting angle up to 15° for each direction

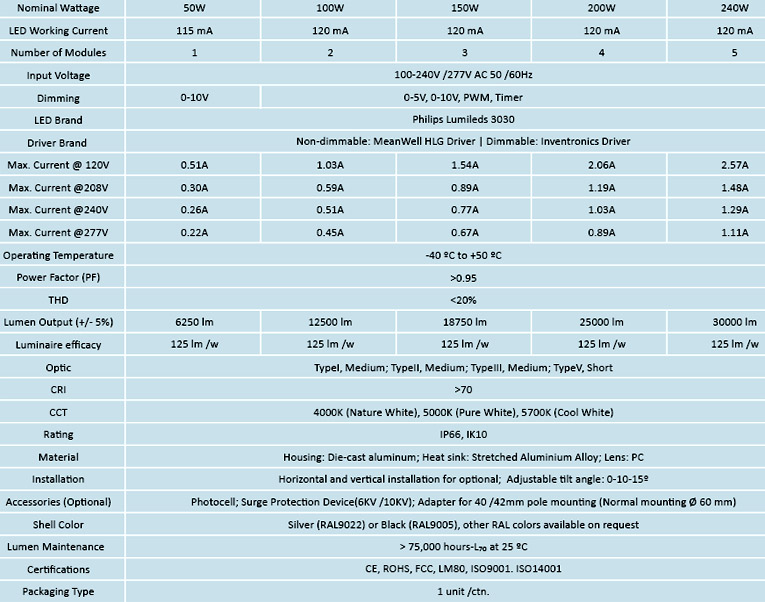

Parameters of LED Street Lights

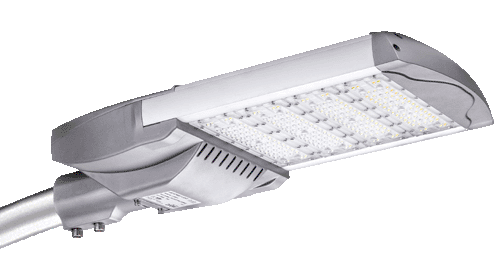

LED-Street-Lights-ZSIMC-LED-STREET-LIGHTING-Product-Photo
Ideal Application:
Industrial and commercial outside areas, parking areas, drive ways, road, high ways, and all kinds of streets areas.

Additional intelligent lighting controls:

1.Dimmable
2.Sensor with day lights switch

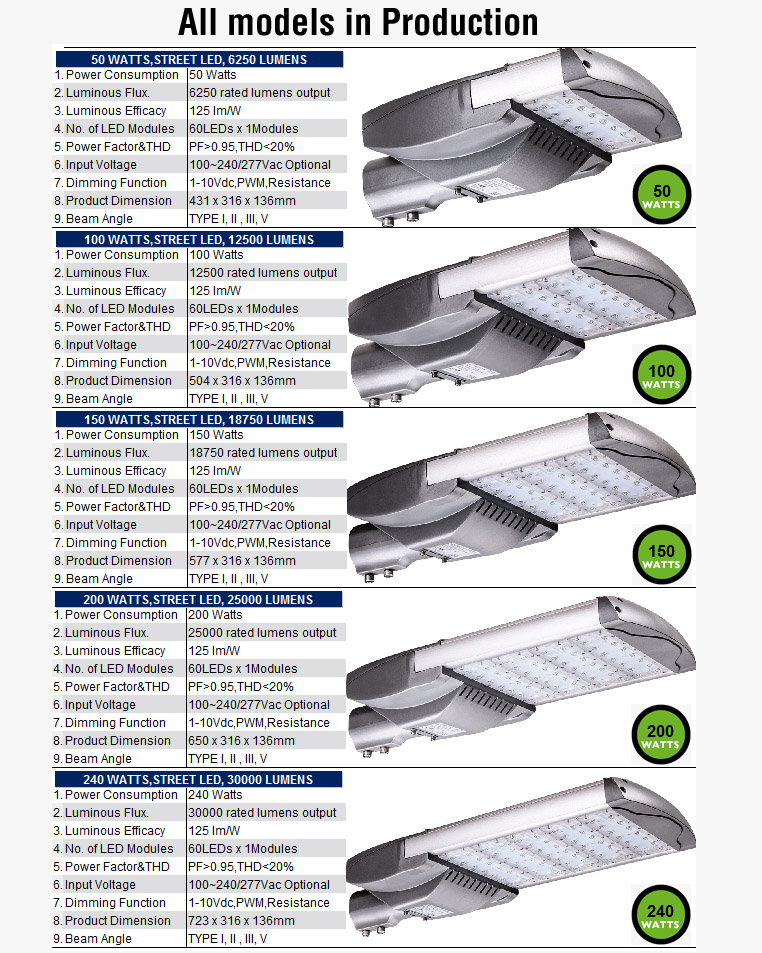

LED-Streetlights-All-Production-Models

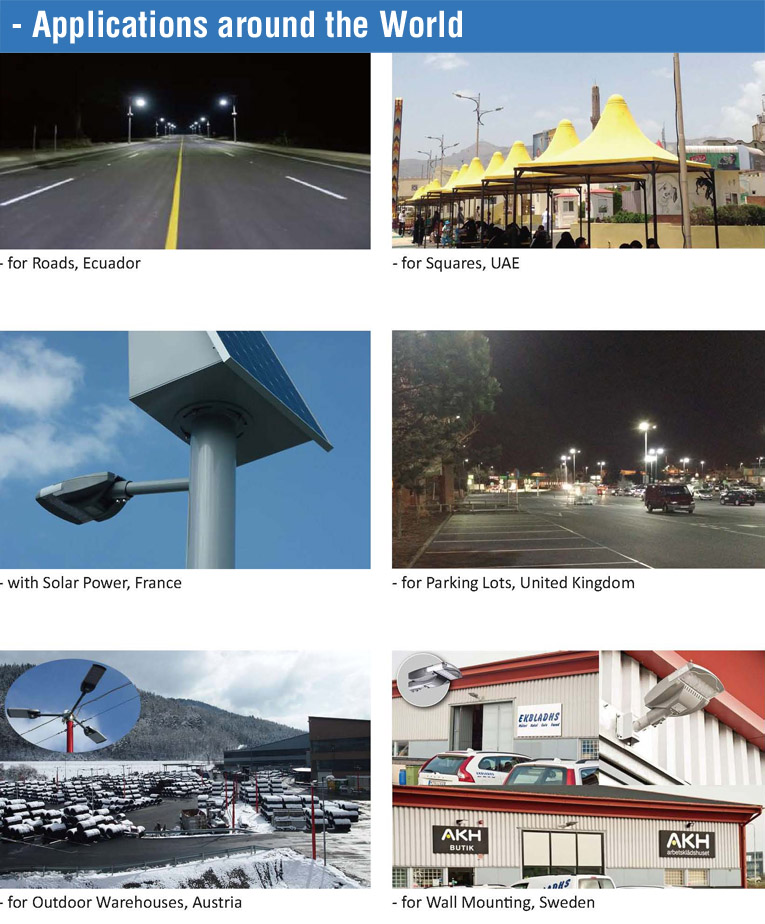

Applications-for-LED-Street-Lighting

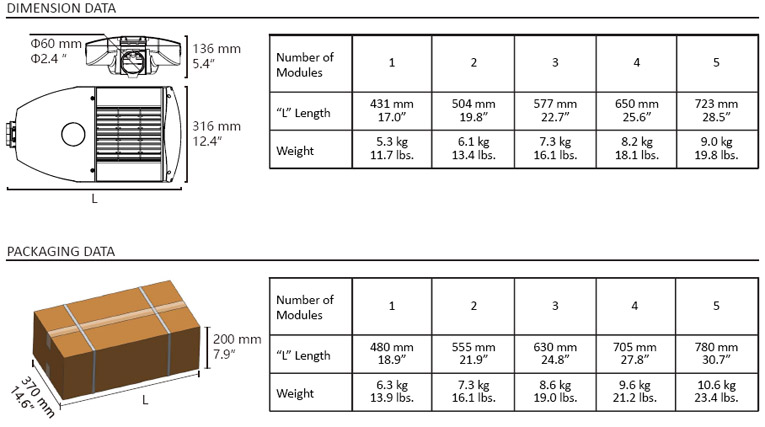

Packing Dimension & Weight

Packing Size and Weight

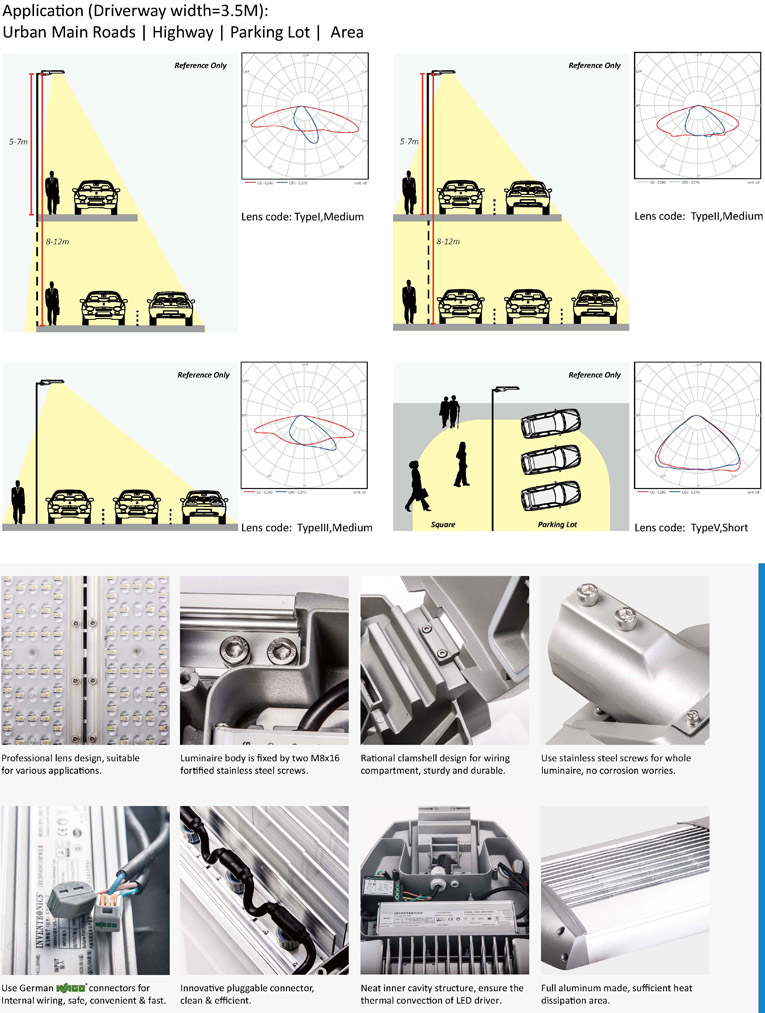

LED Street Lighting Pattern

Lighting Pattern





Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).

» 0-5V Dimming
The recommended implementation of the dimming control is provided below.

0-5-Dimming

Notes:
1. The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-5V dimming is not used, Dim + should be open.
4. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.


» 0-10V Dimming
The recommended implementation of the dimming control is provided below.

0-10v-dimming-for-H5B-Highbay-LED-Light-ZSIMC

Notes:
1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-10V dimming is not used, Dim + should be open.
4. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

» PWM Dimming
The recommended implementation of the dimming control is provided below.

LED-HIGH-BAY-LIGHTING-ZSIMC-LED-PWM-DIMMING

Notes:
1. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
2. If PWM dimming is not used, Dim + should be open.
3. When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.

LED-HIGH-BAY-LIGHT-DIMMING-PROGRAM

Notes:
1. Time Dimming is required to program by computer (Microsoft Windows).
2. Set the timing curve by pulling the sliders.

Sensor with day lights switch

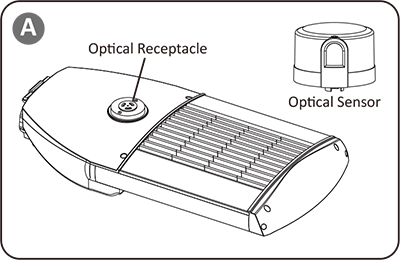

If the fixture with OPTICAL CONTROL function, the Optical Receptacle will be installed on the cover of fixture. See A. Fit the pins of Optical Sensor to Optical Receptacle, firmly insert and rotate Optical Sensor to proper position.

Photo Sensor

Sensor with day lights switch


Warranty

Wewarrants this LED Street Light product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. The company provides free repair or replacement within warranty period. We shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.

Damage by thunder stroke over 10KV(L,N to FG) /6KV(L to N) will not covered by warranty based on EC61000-4-5.
