China LED Streetlights,60Watt 90Watt 120Watt,Ultra Bright White Light

You can send an Email Inquiry to info@ledproductos.com, we will reply with pricing, packing weight & dimensions, specification catalog, certification & listings, and also follow up your specific requirements & questions accordingly.
LED Streetlights,60Watt 90Watt 120Watt,Ultra Bright White Light
LED Street Lights own up to 130 lm/W (lumens per watt) efficiency and over than 100,000 hours operation life. Exquisite design with powerful thermal output, with more reliable waterproof performance.

An elegant design with 3RD Generation LED Module, High Efficient PHILIPS 3030 2D LED Luminous Source and High Reliable MEANWELL® HLG LED Driver. Our LED Street Lights give best luminous output, stability and extra-long life. Each LED emitter owns electrostatic protection component, maximally avoid the damage of electrostatic.
LED Streetlights,60Watt 90Watt 120Watt,Ultra Bright White Light
Product Overview & Common Applications
LED Street / Parking Lot Lights

A wide variety of LED parking and street lights for your selection. LED street lights offer a long lifespan and extreme reliability, both important characteristics for street lighting selection. Whether you are interested in installing new LED street lights or prefer a LED retrofit of your existing street light fixtures, we offer a wide selection to choose from. Our LED street lighting comes in a variety of light distribution options, which is important in achieving the desired light cast. In addition to LED street light fixtures and street LED lighting retrofits, we also offer street lights and retrofits and pathway lights and retrofits. Additionally, we offer advanced lighting control technologies, like photocells and dimmable microwave motion sensors that can result in even greater electricity savings while helping to assure safety and compliance.

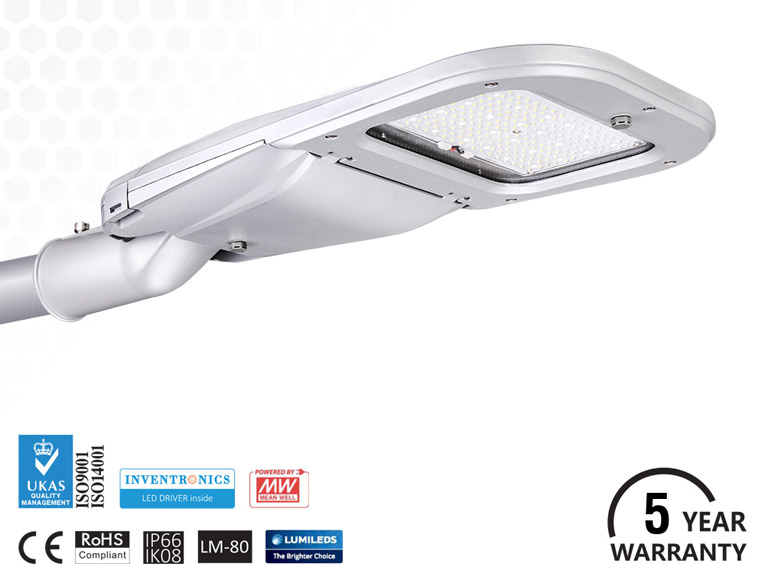

LED-Street-Lights-Model2-ZSIMC-LED-LIGHTING-01

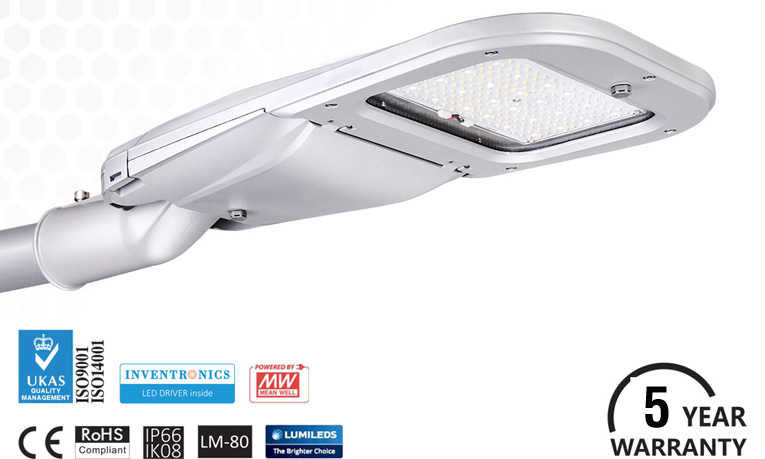

Specifications & Description
LED Street Lights, Maintenance Free, Reliable Performance

H-Series LED Street Lights own up to 110 lm/W (lumens per watt) efficiency and over than 65,000 hours operation life. Exquisite design with powerful thermal output, with more reliable waterproof performance. H-Series LED Street Lights are intended to build the most cost-performance ever.

An elegant design with 3RD Generation LED Module, High Efficient PHILIPS® LUXEON® REBEL ES LED Luminous Source and High Reliable MEANWELL® HLG LED Driver. H-Series LED Street Lights give best luminous output, stability and extra-long life. Each LUXEON REBEL ES owns electrostatic protection component, maximally avoid the damage of electrostatic.

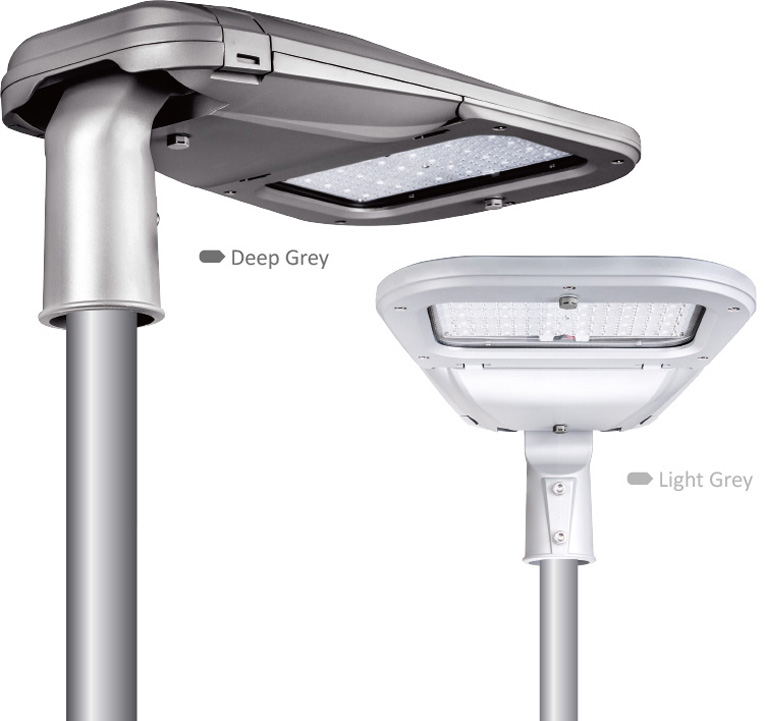

LED-Street-Lights-Model2-ZSIMC-LED-LIGHTING-02

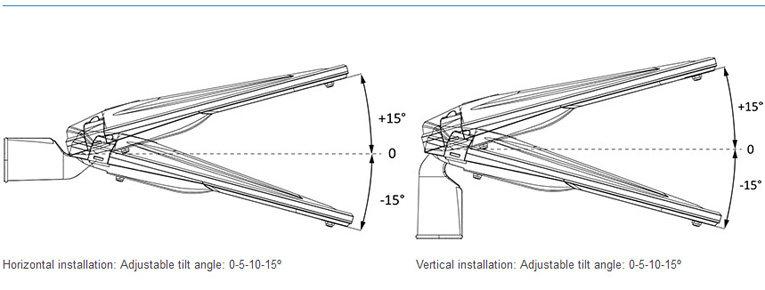

Horizontal installation: Adjustable tilt angle: 0-5-10-15º
Vertical installation: Adjustable tilt angle: 0-5-10-15º

INSTALLATION ANGLE

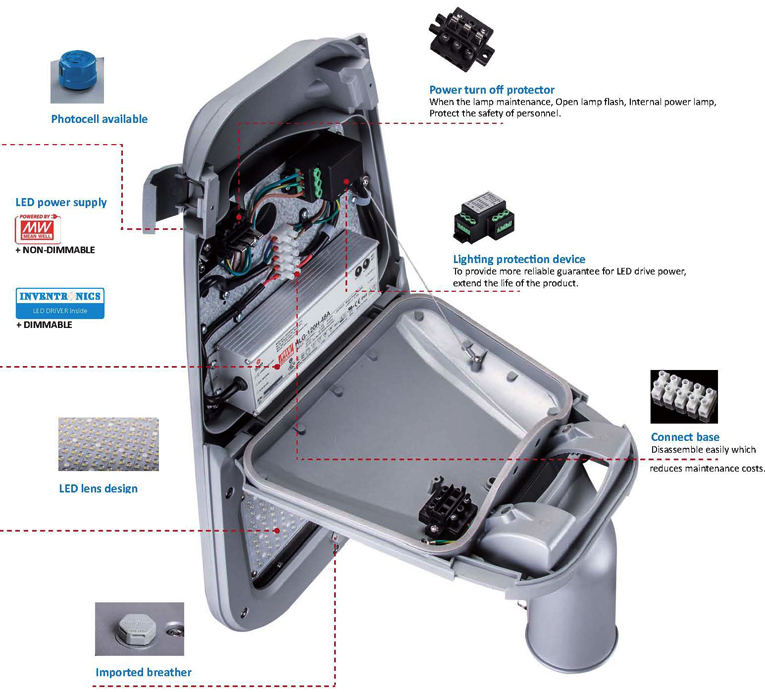

LED-Street-Lights-Model2-ZSIMC-LED-LIGHTING-03




LIGHTING PATTERN

LIGHTING THE ROADS OF THE FUTURE

Bring security, safety and brightness to streets, parking lots, expressways,highways and all public spaces with our LED’s Street Lighting Series.

These LED luminaries transform road illumination from uneven and discolored to brilliant and uniform. Our street lighting products are especially designed to weather the elements with rugged aluminum housing and anti-corrosion coating. They have also been engineered to provide lasting performance as lightweight fixtures that make installation and retrofitting a breeze. Adding definition, modern appeal and vivid color has never been easier.

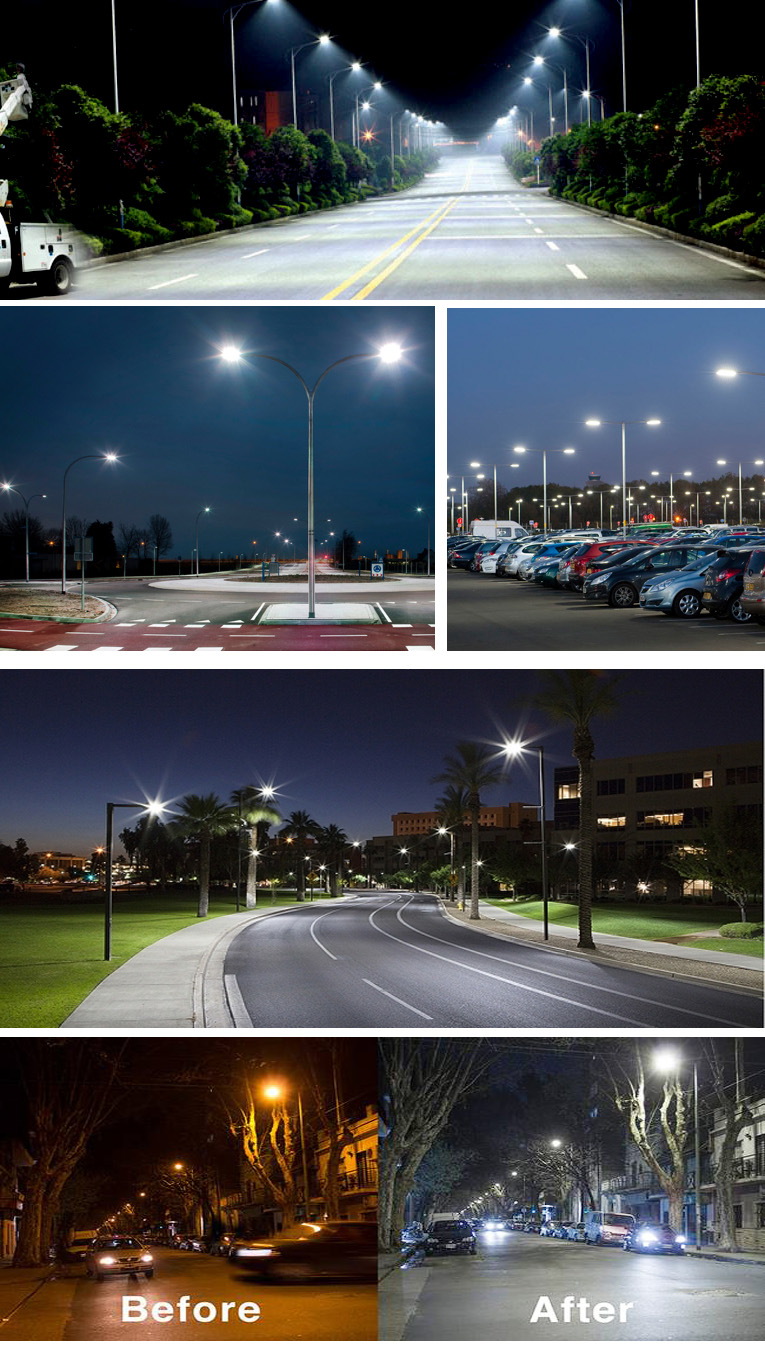

LED-STREET-LIGHTING-PROJECT-ZSIMC-LED-LIGHTING

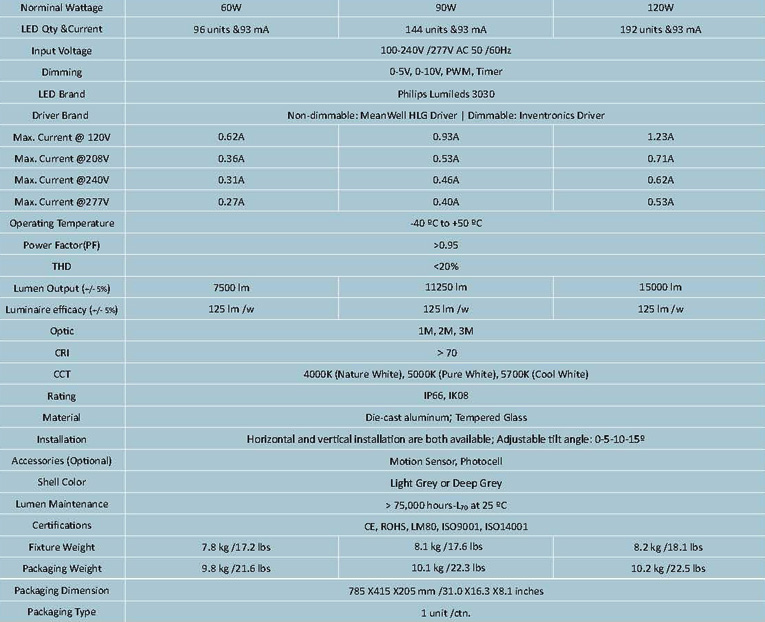

LED Street Lighting Models - Parameters

Parameters

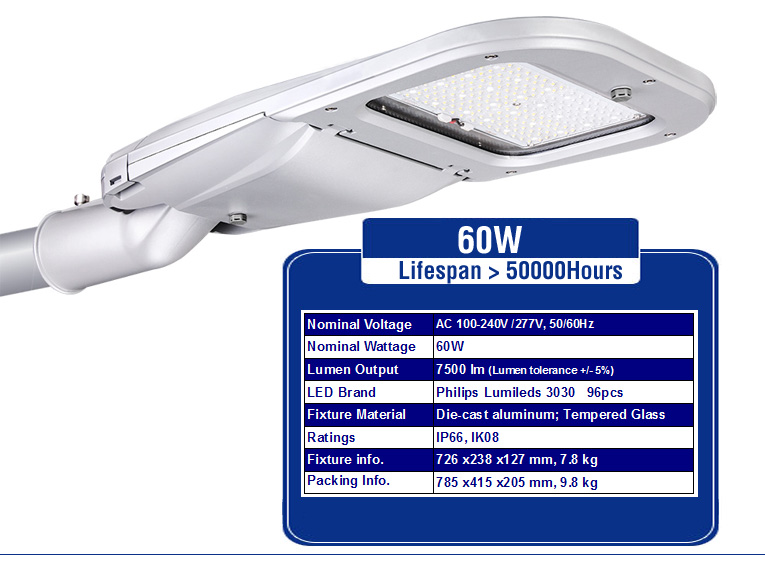

60W-LED-STREET-LIGHT
90W-LED-STREET-LIGHT

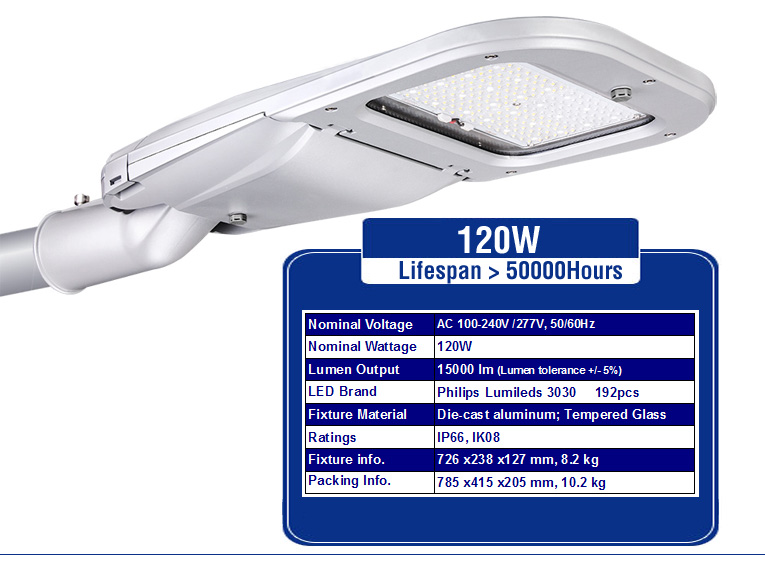

120W-LED-STREET-LIGHT


Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).

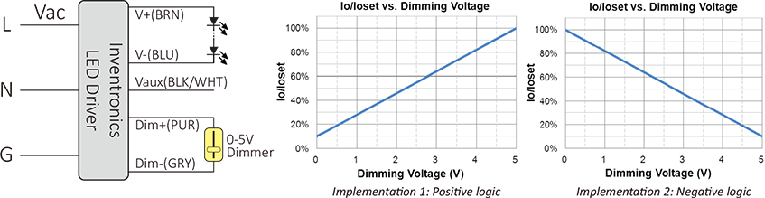

» 0-5V Dimming
The recommended implementation of the dimming control is provided below.

0-5V Dimming

Notes:
1. The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-5V dimming is not used, Dim + should be open.
4. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

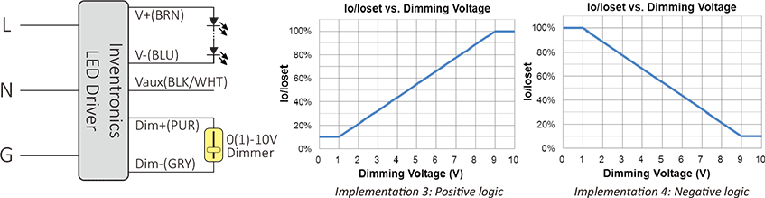

» 0-10V Dimming
The recommended implementation of the dimming control is provided below.

0-10V Dimming

Notes:
1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-10V dimming is not used, Dim + should be open.
4. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

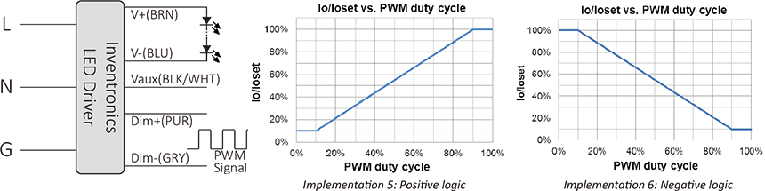

» PWM Dimming
The recommended implementation of the dimming control is provided below.

PWM Dimming

Notes:
1. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
2. If PWM dimming is not used, Dim + should be open.
3. When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.

LED-HIGH-BAY-LIGHT-DIMMING-PROGRAM

Notes:
1. Time Dimming is required to program by computer (Microsoft Windows).
2. Set the timing curve by pulling the sliders.


Warranty

Wewarrants this LED Street Light product against defects in materials and workmanship under normal use for a period of FIVE (5) YEAR from the date of purchase. The company provides free repair or replacement within warranty period. We shall charge against defeats by abnormal storage, usage, connection or change the structure or any components of the product.

Damage by thunder stroke over 10KV(L,N to FG) /6KV(L to N) will not covered by warranty based on EC61000-4-5.
