LED Traffic Signal Modules,Replacement LED Signal Modules
8" / 12" LED Traffic Signal Modules, full ball, arrows and pedestrian signal modules.  Featuring the lowest wattage in the industy, our LED Traffic Signals are helping municipalities worldwide cut energy costs and reduce maintenance. Our LED Traffic Light Module is of assured and high quality and competitive price. With LED traffic light module, there is no need for you to change the existing housing and just replace the exising bulb directly, which is quite convenient and can save your cost and energy.
LED Traffic Signal Modules,Replacement LED Signal Modules
Product Overview & Common Applications
Superior Performance and Reliability

• Significant energy and maintenance saving
• 8” and 12” modules
• Clear lens
• Exceptional color uniformity and readability
• Excellent moisture and dust resistance
• Environmentally friendly
• Robust hard-coated and UV-stabilized polycarbonate lens for increased longevity against the elements
• Engineered aluminum heat sink for optimum thermal management
• Maintains 70% of the initial lumen intensity after 100,000 hours of operation

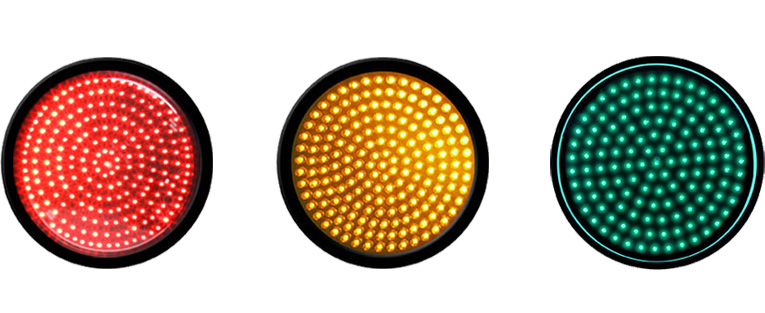

LED-Traffic-Signal-Modules-12Inch-Full-Ball
Specifications & Description
What are LED lamps and what are the benefits?

A light emitting diode is a tiny semiconductor that emits visible light when an electric current passes through it. Unlike ordinary incandescent bulbs, there is no filament. LED traffic signals use high-brightness LEDs connected together to build a cluster consisting of hundreds of LEDs.

LED lights only produce light in the desired colors, such as red, yellow or green, making them ideal for traffic signals. There is no need to filter the light through a lens. As a result, true colors are produced more efficiently, with minimal waste of heat energy. LED lights consume only 10 percent of the energy used by incandescent lamps (10-25 watts versus up to 150 watts, respectively). LED lights also look brighter since the light is distributed equally across the entire surface (an advantage in poor weather conditions).

LED lamps last 100,000 hours (fifty times longer than incandescent bulbs at 2,000 hours) because there are no filaments to burn out. Relamping cycles and emergency replacement projects decrease, reducing maintenance costs. This provides staff with more time for other projects.

LED lights also increase traffic safety as they minimize the number of signal outages and due to their low energy consumption, LEDs are more economical to use with battery back-up systems. Batteries can keep LED traffic signals functioning for up to 24 hours in the event of a power outage.

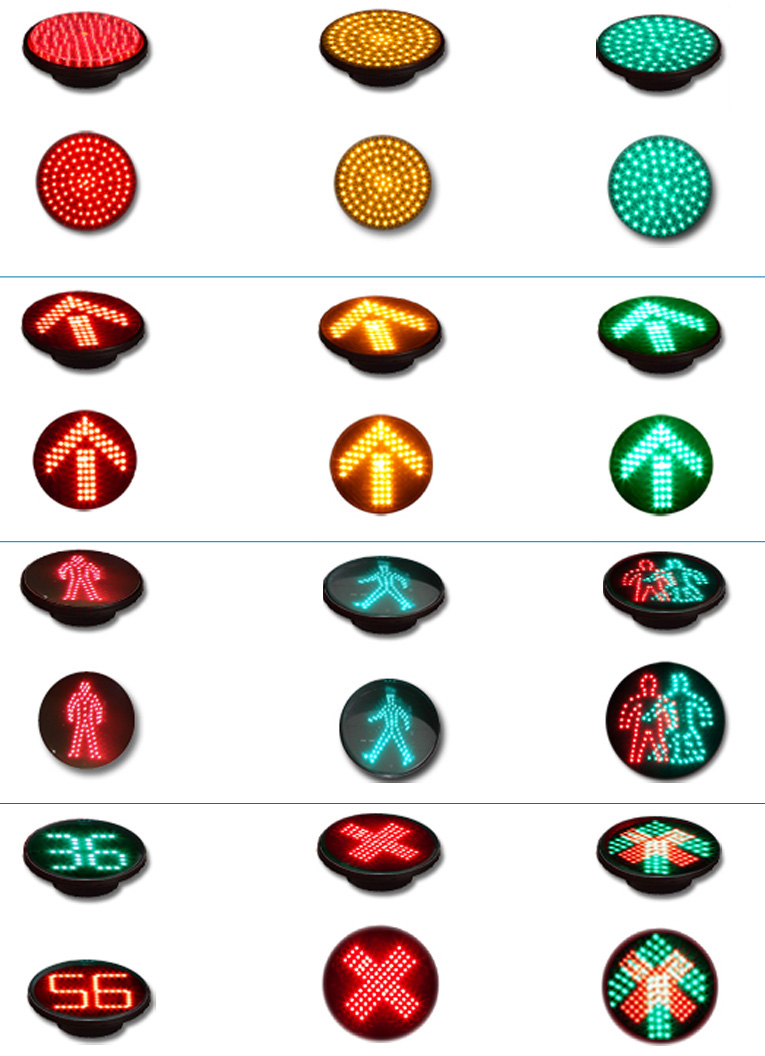

LED-Traffic-Signal-Modules-All-Models





300mm 12Inch Red LED Full Ball Round Signal
  300mm-12Inch-Red-LED-Full-Ball-Round-Signal
LED Quantity Red: 208 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Red: 620 - 622.5nm
Intensity Red: ≥ 800 cd
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch Yellow LED Full Ball Round Signal
  300mm 12Inch Yellow LED Full Ball Round Signal
LED Quantity Yellow: 208 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Yellow: 590 - 592.5nm
Intensity Yellow: ≥ 800 cd
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch Red LED Full Ball Round Signal
  300mm 12Inch Green LED Full Ball Round Signal
LED Quantity Green: 145 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Green: 502.5 - 505nm
Intensity Green: ≥ 800 cd
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch Red LED Arrow Signal
  300mm 12Inch Red LED Arrow Signal
LED Quantity Red: 96 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Red: 620 - 622.5nm
Intensity Red: ≥ 800 cd
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch Yellow LED Arrow Signal
  300mm 12Inch Yellow LED Arrow Signal
LED Quantity Red: 96 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Yellow: 590 - 592.5nm
Intensity Yellow: ≥ 4000 cd/m²
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch Green LED Arrow Signal
  300mm 12Inch Green LED Arrow Signal
LED Quantity Red: 70 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Green: 502.5 - 505nm
Intensity Green: ≥ 4000 cd/m²
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)

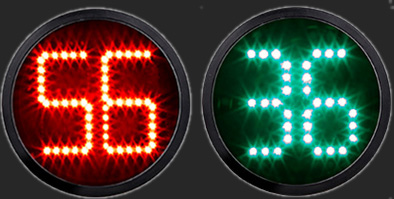

300mm 12Inch LED-Traffic-Countdown-Timer-Signal-Module
  LED-Traffic-Countdown-Timer-Signal-Module
LED Quantity Red: 70 pcs | Green: 56 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power Red: ≤ 15W | Green: ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Red: 620 - 622.5nm | Green: 502.5 - 505nm
Intensity Red: ≥ 4000 cd/m² | Green: ≥ 4000 cd/m²
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch LED-Pedestrian-Walkman-Signal-Red-Green-Dynamic
  LED-Pedestrian-Walkman-Signal-Red-Green-Dynamic
LED Quantity Red: 64 pcs | Green: 70 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power Red: ≤ 15W | Green: ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Red: 620 - 622.5nm | Green: 502.5 - 505nm
Intensity Red: ≥ 4000 cd/m² | Green: ≥ 4000 cd/m²
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)




300mm 12Inch LED-Vehicle-Signal-Module-Red-Cross-Green-Arrow
  LED-Vehicle-Signal-Module-Red-Cross-Green-Arrow
LED Quantity Red: 96 pcs | Green: 70 pcs
Operating Voltage 110V or 220V AC(±10%), 50/60Hz | 12V or 24V DC
Power Red: ≤ 15W | Green: ≤ 15W
Apply Diameter Ф300 mm (Ф12 inches)
Wavelength Red: 620 - 622.5nm | Green: 502.5 - 505nm
Intensity Red: ≥ 4000 cd/m² | Green: ≥ 4000 cd/m²
Housing Material Polycarbonate
Lens Material Clear Polycarbonate
Fixture Dimension Ф307 x74 mm (Ф12.1 x2.9 inches)
Fixture Weight 1.6 kg (3.5 lbs)
Standards GB14887-2006, EN50293:2000 & EN12368:2006
Packing Type 12unit /ctn.
Packing Dimension 660 x570 x340 mm (26.0 x22.4 x13.4 inches)
Gross Weight 21 kg (46.3 lbs)
