UFO LED High Bay Light,60Watt,100Watt,150 Watt,120-277 Volts

This Round Circular LED High Bay Light provides users with 24,000 lumens of neutral, white 4000K light. This fixture is Waterproof IP 65 rated . Install this high bay in any retail, warehouse, gymnasium, or industrial facility and enjoy all the energy savings provided by LEDs. Replace a 400 Watt Metal Halide High Bay with this fixture, and enjoy the same amount of light, at a fraction of the cost, for an efficient 80,000 hours. Email us  today to learn more about this product.

UFO LED High Bay Light,60Watt,100Watt,150 Watt,120-277 Volts
Product Overview & Common Applications

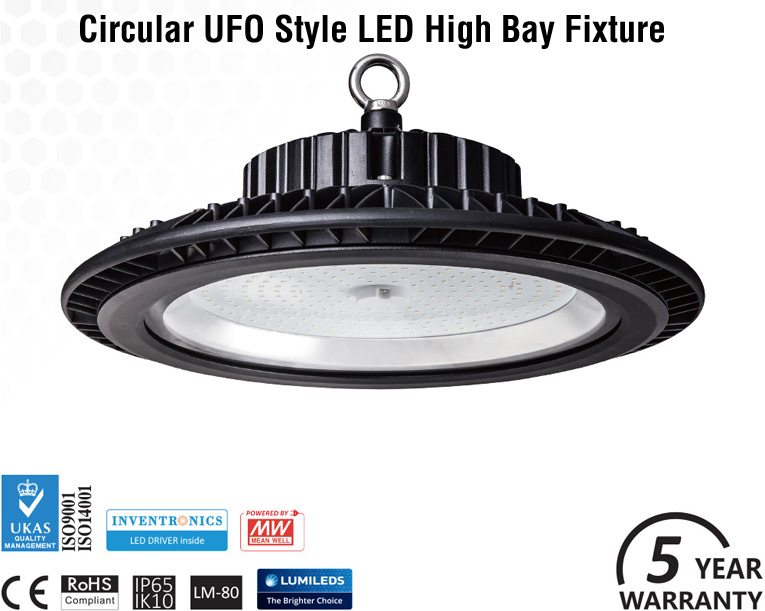

ZSIMC-LED-Lighting-01-Circular-UFO-Style-LED-High-Bay-Fixture


This compact LED high-bay light shines brightly when reliability and performance are critical. Using powerful LEDs, the UFO high-bay light emits 23,000 lumens of bright natural white illumination. The 200-watt LED light is comparable to a 500-watt metal-halide (MH) fixture. And with a life expectancy that's 3 times as long as MH fixtures, the LED light reduces costly repairs and the need for replacements. The powder coated, die cast aluminum light is weatherproof and rust resistant with an integral LED-cooling heat sink and a glass lens. A sturdy steel eye bolt is included for suspended chain mounting, or the LED light can be surface mounted on walls and ceilings with an adjustable U-bracket (sold separately). This LED high-bay light is equipped with a Mean Well constant-current driver and operates within a wide 100-277 VAC range. Also available in a 150-watt version.

Perfect for warehouse lighting, workshop lighting, factory lighting, tunnel lighting, supermarket lightingbig-box retail lighting, landscape or architectural lighting, and more

Specifications & Description

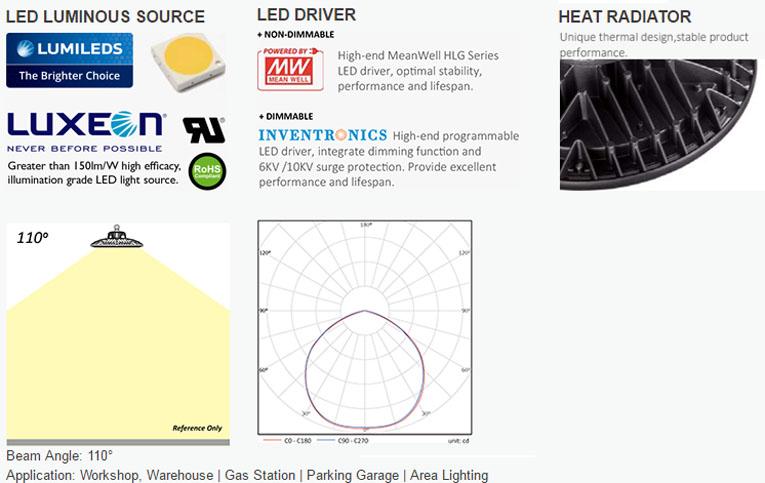

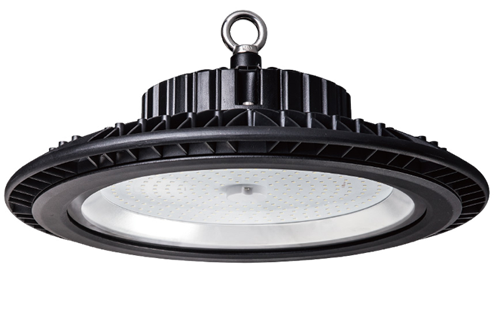

ZSIMC-LED-Lighting-04-UFO-HighBay-LED-Fixture-IMAGE Using high power Philips 3030 2D 125L/W chip,More beam angle options of reflector lets you choose the right use place.No extra light diffusing,just be focused on the ground.No black spot or blinking.Easy installation.Available running at 110VAC & 277VAC,IP65,ideal for high bay lighting applications.Internal waterproof Meanwell Power supply which is UL & TUV & FCC & CE approved.5 years warranty.


FEATURES

LED High bay lights have a very wide range of applications. With their placement in higher ceilings, the lighting needs to be powerful enough to still offer widespread illumination. With this round LED high bay lights, you get the scope of illumination you need with the lasting power of LED lights. LED lighting lasts longer, up to four times as long as traditional lighting options, and it burns brighter at a cooler temperature making it ideal for long periods of constant use. It doesn’t require long warm-up time so it is always ready when you are. These LED round high bay lights are an economical way to light a range of industrial settings including mechanic shops, warehouses, and other places in need of powerful lighting.




ZSIMC-LED-Lighting-06-Round-LED-High-Bay-Light

Dimming
Multiple dimming functions are integrated (0-5V DC or 0-10V DC or PWM Signal or Timer).

» 0-5V Dimming
The recommended implementation of the dimming control is provided below.

0-5-Dimming

Notes:
1. The dimmer can also be replaced by an active 0-5V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-5V dimming is not used, Dim + should be open.
4. When 0-5V negative logic dimming mode and Dim+ is open, the driver will output maximum current.


» 0-10V Dimming
The recommended implementation of the dimming control is provided below.

0-10v-dimming-for-H5B-Highbay-LED-Light-ZSIMC

Notes:
1. The dimmer can also be replaced by an active 0-10V voltage source signal or passive components like resistors and zener.
2. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
3. If 0-10V dimming is not used, Dim + should be open.
4. When 0-10V negative logic dimming mode and Dim+ is open, the driver will output maximum current.

» PWM Dimming
The recommended implementation of the dimming control is provided below.

LED-HIGH-BAY-LIGHTING-ZSIMC-LED-PWM-DIMMING

Notes:
1. Do NOT connect Dim− to the output V− or V+, otherwise the driver will not work properly.
2. If PWM dimming is not used, Dim + should be open.
3. When PWM negative logic dimming mode and Dim+ is open, the driver will output maximum current.

LED-HIGH-BAY-LIGHT-DIMMING-PROGRAM

Notes:
1. Time Dimming is required to program by computer (Microsoft Windows).
2. Set the timing curve by pulling the sliders.
